Available in sizes” through 3″ up to 15,000 PSI nonshock cold working pressure, Swivel Joints offer the following features :
- Minimum flow restriction
- Heavy duty hex head style ball loading plug
- Grease retainer ring (ensures clean ball race)
- Standard packing units (operating temperature to 2250 °F)
- High temperature packing units (operating temperature to 450°F).
- Superior hardened ball races ensure uniform surface hardness and depth for longer life under severe thrust and radial loading
- Standard Swivel Joints are provided with API line pipe threads.
- Other end connections are available on request.

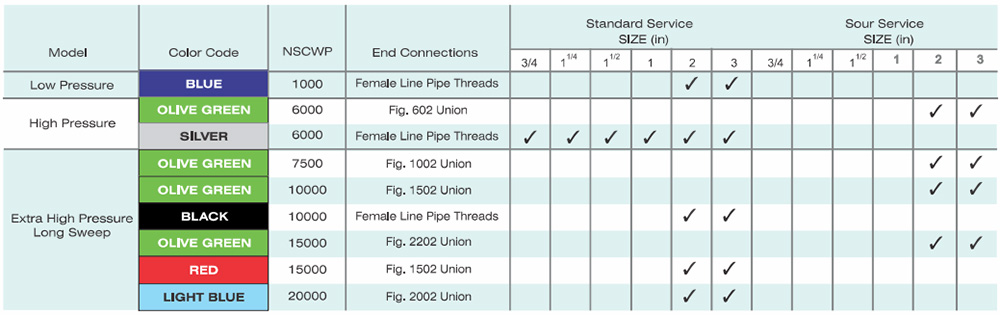

- Available for standard and sour service

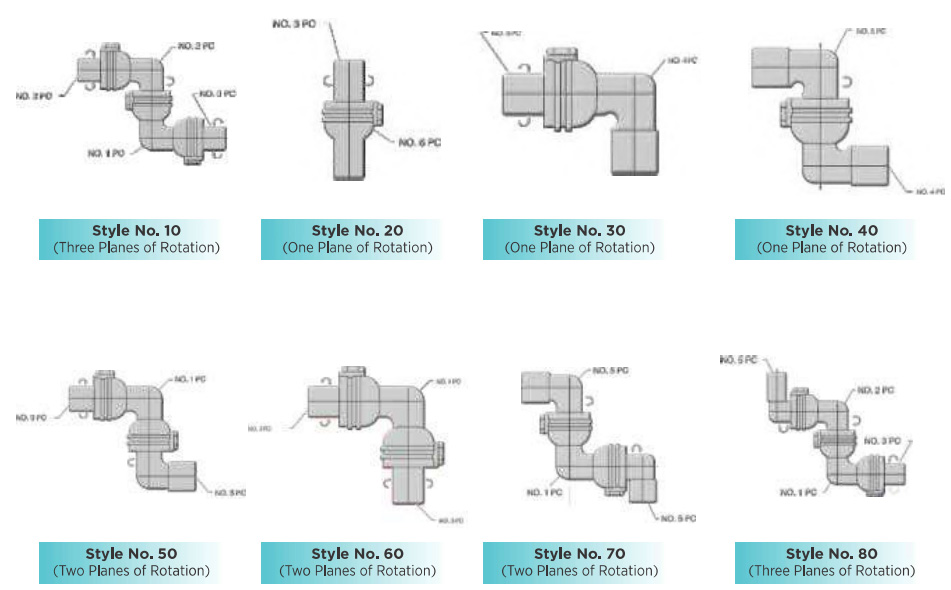

- All sizes are available in 8 styles, for 360° rotation in 1,2 or 3 planes

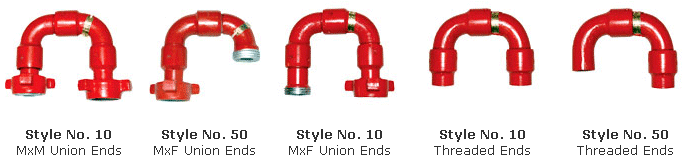

Short Radius Swivel Joints

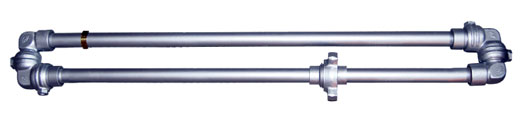

Steel Hose Assemblies
- High pressure cementing and circulating hose incorporate swivel joints of forged steel with superior quality hardened ball races and high pressure type packing units.
- One wing union and two style 50 or style 10 swivel joints with threaded ends
- One wing union and one each style 50 and style 10 swivel joints with integral wing union ends

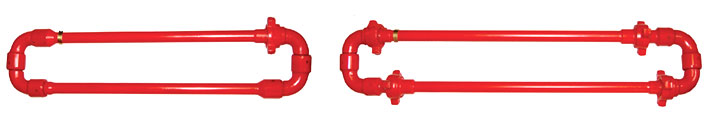

- Four wing unions and two style 50 or style 10 swivel joints with integral wing union ends
- Four wing unions and two style 50 or style 10 swivel joints
Four wing unions and two style 50 or style 10 swivel joints
