Flanges, Tees and Crosses

Studded Crosses and Tees

We manufactures Studded Crosses and Tees according to the designs and tables in API Spec 6A.

Flanged Crosses and Tees

We manufactures Flange Crosses and Tees according to the design requirements and face to centerline requirements of API Spec 6A. When specific nominal sizes and combination of nominal sizes do not appear in API Spec 6 A,

Spools and Wellhead Accessories

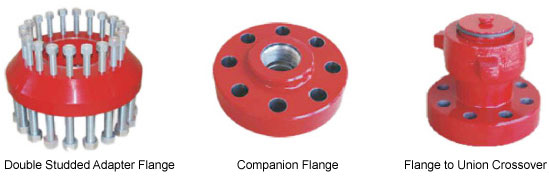

We manufactures a wide range of Drilling Spools and Double Studded Adapter Flanges confirming to API-16 A and 6A in line with specific customer requirements.

Weldneck Flanges

API Specified 6B Weld Neck Flanges have restricted bores to match standard pipe sizes and schedules. API Spec 6A Specified, 6 BX Weld Neck Flanges, have material and dimensions that conform to the requirements for full bore integral flanges. API Spec 6A does not specify overall length of 6BX Weld Neck Flanges, but instead provides dimensions of specific portions of the flange, with tolerance, that are added together, along with an undefined weld bevel, to achieve a length. Customers may specify weld neck length if required.

Adapter Flanges

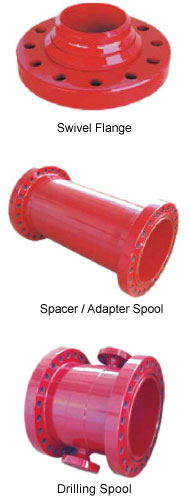

Swivel Flanges : The Swivel Flange permits 360 rotation of an outer ring around a hub. Swivel Flanges can be designed for any size and pressure rating

Adapter Spools : We manufactures Adapter Spools in every size and pressure rating. Adapter Spools have end connections that differ from one another in nominal size and /or pressure rating.

Drilling Spools : We manufactures Drilling Spools in every size and pressure rating. Drilling spools usually have the same nominal end connections and the same nominal outlet connections
